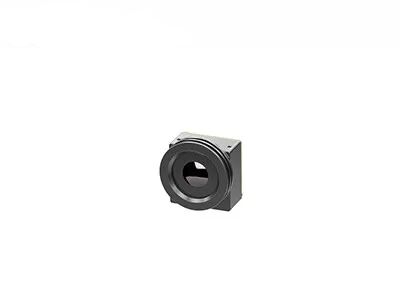

Dış Mekan Algılama için 25mm Lens Soğutmasız LWIR Termal Modül 640x512 12μM
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÇözünürlük | 640x512 | Güç tüketimi | 0,8 W |
---|---|---|---|
Spektral aralık | 8~14μm | Piksel aralığı | 12um |
NETD | <40mK | Kare hızı | 25Hz/30Hz |
Vurgulamak | 25mm Lens Termal Modülü,Dış Mekan Algılama LWIR Termal Modülü,Termal Kamera Çekirdeği Algılama |
Uncooled LWIR Thermal Module: 640x512 12μm, 25mm Lens for Outdoor Detection
TWIN612 thermal module is a new arrival product developed by Global Sensor Technology.
The 640x512/12µm uncooled infrared camera core is a high-performance thermal imaging device that offers advanced imaging capabilities and exceptional sensitivity to thermal radiation. Built using state-of-the-art uncooled microbolometer technology, this camera core delivers superior image quality and detail compared to conventional thermal imaging sensors.
With a 640x512 pixel array and a pixel pitch of 12µm, this camera core provides ultra-high resolution imaging and exceptional temperature sensitivity, with a sensitivity of less than 50 mk. It also delivers a wide dynamic range up to 14 bits, ensuring exceptional accuracy in a range of different operating environments.
Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.
- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W
Model | TWIN612/R |
IR Detector Performance | |
Resolution | 640×512 |
Pixel Size | 12μm |
Spectral Range | 8~14μm |
Typical NETD | <40mK |
Image Processing | |
Frame Rate | 25Hz/30Hz |
Start-up Time | 6s |
Analog Video | PAL/NTSC |
Digital Video | YUV/BT.656/LVDS/USB2.0 |
Image Display | 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot) |
Image Algorithm | NUC/3D/2D/DRC/EE |
Electrical Specifications | |
Standard External Interface | 50pin_HRS |
Communication Interface | RS232/USB2.0 |
Supply Voltage | 4~5.5V |
Typical Power Consumption | 0.8W |
Temperature Measurement | |
Operating Temperature Range | -10℃~50℃ |
Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
Temperature Measurement Accuracy | Greater of ±2℃ or ±2% |
SDK | Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
Physical Characteristics | |
Dimension (mm) | 25.4×25.4×35 (Without Lens) |
Weight | 25g (Without Lens) |
Environmental Adaptability | |
Operating Temperature | -40℃~+70℃ |
Storage Temperature | -45℃~+85℃ |
Humidity | 5%~95%, non-condensing |
Vibration | 5.35grms, 3 Axis |
Shock | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
Optics | |
Optional Lens | Fixed Athermal: 13mm |
The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue
1. What is Infrared Camera?
Infrared thermal imaging system uses infrared detectors to sense infrared radiation, and convert it to electrical signals which are then amplified, processed to an image displayed.
2. Basic Principle of Infrared Camera
Thermal imaging technology is a kind of passive, non-contact detection and recognizing technology. It has two main functions:
-Thermography: non-contact temperature measurement and fault detection
-Night Vision: easily detect and identify the target in total darkness
